High Power Ceramic Tube Wirewound Resistor
HPR Ceramic tube coated wirewound resistor,High power ceramic tube wirewound resistor (coated type)
Ceramic tube coated wirewound resistor,High power ceramic tube wirewound resistor (coated type)
Description

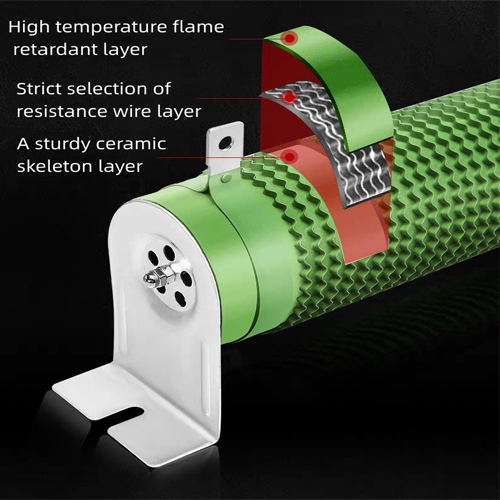

- Structure: Wire-wound elements are wrapped around a ceramic core and sealed with an enamel or high-temperature coating
- High Power Dissipation: Ideal for high-temperature and power-intensive environments
- Applications: Common in industrial machinery, inverters, motor drives, and industrial heaters

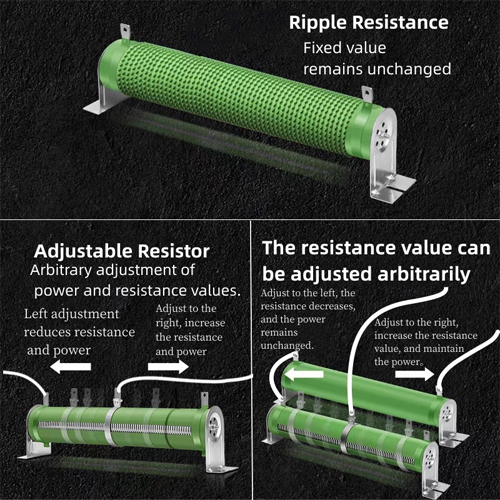

- Variations: Often available as fixed, adjustable, or corrugated wirewound resistors
- Examples: Common types include the axial and vertical (vertical corrugated) formats
Technical specifications
| Housing | Ceramic tube |
|---|---|
| Element | Wire-wound |
Key features
- High-power,fixed type,adjustable type
- Non-flammable,heat-resistant material
- Superior heat dissipation,high stability
- Ideal for power supply, braking systems, and heavy-duty machinery
Customization
Power rating, resistance value, dimensions and lead configuration can be adjusted to your drawing.
- Custom resistance values and tolerance
- Custom power ratings and package dimensions
- Lead length and configuration options
- Drawing review before production
Need technical information or a quotation?
Share your drawing, part number or technical requirements. Our engineers will respond with pricing and lead time.
